Our Cabinetry

Our Cabinetry Solutions

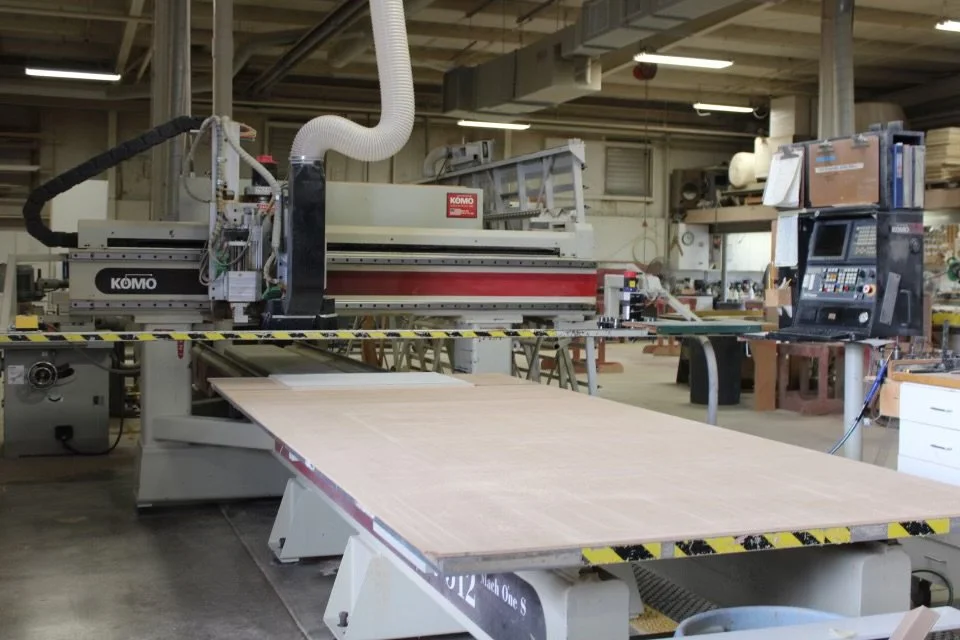

Dental Office Cabinetry Solutions provides versatile custom cabinets to dental offices around the country. Our team will work with you to determine which materials and designs are right for your office based on your needs and budget. From small renovations to new construction we have the expertise, product knowledge, and quality craftsmanship you need to complete your project. Our knowledge of materials, applications, fabrication and installation procedures ensure that you will receive the very best dentistry cabinets that meet your individual office needs. Our staff is thoroughly trained and uses state of the art equipment in the manufacturing process.

Side Cabinets

Rear Cabinets

Sterilization and Lab Cabinets

Shared Sink Cabinets

Other Custom Accessories

Handle Options
Color Options
Request Consult

Our Cabinet and Countertop Specifications

Our manufactured plastic laminate casework consists of cut-to-size custom panels with full overlay doors and drawers.

  • Two-sided white melamine thermo fused to 3/4” particle board core

    Two-sided white melamine 1/2” back panels

  • Vertical grade high pressure plastic laminate

  • Grass Z Box commercial drawer system

    Drawer boxes have 3/4” melamine bottoms and backs with metal slides

    Drawer slides are full extension, 100-pound load rated with smooth ball bearing operation

    Soft close option available

  • 3/4” plywood ladder type construction with plastic laminate face to match the cabinetry

  • Doors and drawer fronts: 3 mm PVC edge banding

    Cabinet face and shelf edges: 5 mm PVC edge banding

  • Plastic Laminate:

    Horizontal grade high pressure laminate on 3/4” particle board

    Water resistant substrate with backer sheet and 1 1/2” build up around outer edges

    Plastic Laminate:

    Plastic laminate counter top with 3 mm PVC edges at 1 1/8” thick

    Solid Surface:

    1/2” solid surface with 1” MDF build up and a 1.5” drop edge

  • Available in 2cm and 3cm thickness

  • 4” wire pulls with satin nickel finish

    Additional pull options available

  • Concealed Grass 110 degree fully adjustable clip-on style

    Single pivot institutional hinge arm with opening angle of 270 degrees

    Doors up to 34” in height to have 2 hinges per door

    Doors 35” - 62” in height to have 3 hinges per door

    Doors 63” to 80” in height to have 4 hinges per door

    All doors to have rubber bumpers

    Soft close option available

  • 3/4” white melamine construction

    Adjustable shelf supports at 1.25” centers, 5 mm aluminum shelf pins, 4 pins per shelf

  • Removeable core, disc tumbler, cam style lock with strike

    Lock for sliding 3/4” doors is a disc plunger lock, sliding door type with strike

    Lock for sliding glass doors is a ratchet type sliding showcase lock
